Automatic Rescue Device

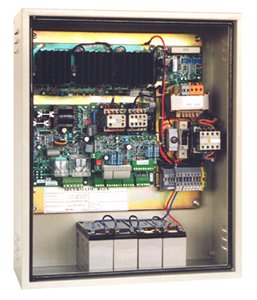

Securmatic R

RESCUE DEVICE  (A.R.D.)  FOR TRACTION LIFTS

  • Automatic emergency functioning for mains blackout.

  • An internal logic circuit chooses the best direction, taking the lift car to floor level and opening the doors letting the passengers safely outside.

  • Suitable for any winch motor lift plant.

  • Works on both new and old plants.

  • Minimum maintenance.

The A R D equipment operates automatically upon occurrence of a mains blackout. It drives the hoist gear motor by means of a static frequency converter powered by a bank of storage batteries, brings the car to the nearest floor and opens the automatic doors.



During the emergency operation a special load sensing circuit automatically chooses the best travel direction in counterweighted lift systems, whenever an unbalance is detected between the car load and the counterweight.



Current standard production:


- Mains 380-415V - 50 Hz , three phase
- Motor  380-415V - 50 Hz , three phase
- DC Brake (60V,3A / 110,1.5A / 180V,1A)



 Door operator motor:

Type R:

AC three phase door operator motor(3x127/220/380V)

Type S:

DC door operator motor, armature and field (60/110/180V)



MODEL

MAX MOTOR

POWER

MAX CURRENT

OUTPUT

BATTERY

height/length/depth

(weight without batteries)

SECURMATIC R12

11 kW

27A

48V; 7.5 Ah

mm 540/445/190 - kg. 16.5

SECURMATIC R24

22 kW

50A

48V; 18 Ah

mm 650/500/220 - kg. 23

SECURMATIC R36

25 kW

55A

48V; 28 Ah

mm 650/500/220 - kg. 23

SECURMATIC R48

35 KW

75A

48V; 28 Ah

mm 650/500/220 - kg. 28

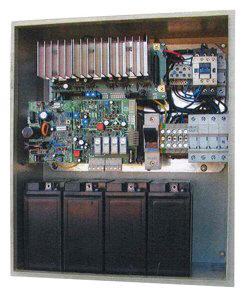

UPS-SECURBREAK®

Securbreak





The automatic rescue device UPS-SECURBREAK® operates immediately and, powered by an internal battery, enables the arrival of the lift to the nearest floor at low speed and opens the automatic doors.
Field of Application
Traction and Hydraulic Lift
The UPS-SECURBREAK® equipment is suitable for mains 380~415VAC, 50~60Hz.



Model

Main Motor

Max Power

Internal

Batteries 4x12V

Dimension

(incl. battery)

Weight

(excl. battery)

UPS-SECURBREAK-12

12KW

Capacity : 18AH Peak Current : 120A

40x47x22 cm

29 Kg

UPS-SECURBREAK-16

16KW

Capacity : 18AH Peak Current : 120A

40x47x22 cm

29 Kg

Download product brochure (PDF)
