Elevator Travelling Cable





CCTV CABLES 4 X 1.5MM2 + 8 X 2 X 0.5MM2 + 2 X RG59 (75 OHM)

Construction

1. 4 x 1.50 mm2 stranded bare copper 1.50 mm2 (30x0.25Ø). PVC insulated. 3.00 mmØ black with white numbers

2. 8x2x0.50 mm2 stranded bare copper 0.5mm2 (16x0.20Ø). PVC insulated, 1.75 mmØ black with white numbers

3. 2 x coaxial cables RG 59, 75Ω, 5.0 mm

4. Steel supports (stranded galvanized steel), breaking load 985 N

5. One white slitting cord per group

6. Outer sheath : PVC black    markings : - metric scale

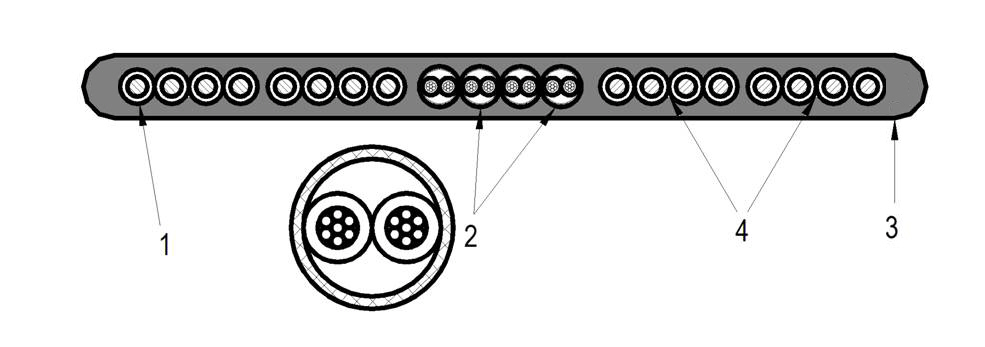

16 CORE + 4 TWISTED PAIR

Construction

1. Conductor 0.75mm2 (24x0.2) untinned, with PVC-instulation

2. 4 x twisted pair x 1.20mmØ Screened-2x0.25 mm2 (7x0.21Ø)

3. Outer sheath : PVC black    markings : - metric scale

4. One white slitting cord per group





12~24 CORE X 0.75MM2 WITH STEEL SUPPORT

Construction

1. Conductor 0.75mm2 (24x0.2) untinned

2. Conductor with double PVC insulation Colour of core : Black with numbers + 1 core green/yellow

3. Slitting cord in each group, white

4. Outer sheath : PVC black    markings : - metric scale

5. Steel supports (stranded galvanized steel)





12~24 CORE X 0.75MM2 WITHOUT SUPPORT

Construction

1. Conductor 0.75mm2 (24x0.2) untinned

2. Conductor with double PVC insulation Colour of core : Black with numbers + 1 core green/yellow

3. Slitting cord in each group, white

4. Outer sheath : PVC black    markings : - metric scale

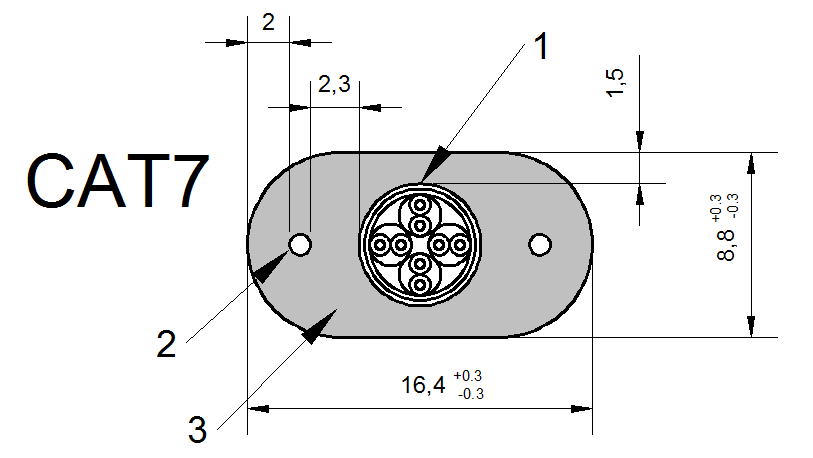

FLAT CABLE - CAT7 WITH STEEL ROPE

Construction

1. Cable : CAT7   Ø = 5.8

2. Steel rope tinned    Ø = 1.0

Art No. Sheath Colour
10151804 Halogen Free Black
60500827 PVC Black

3. Sheath - see Table



 Test voltage conductor / conductor 100V

                       conductor / screen  100V



     Free clamping length max. 250M

     Cat. 7 flex cable operation temperature 0°C to +50°C



Packagings



We can supply the flat travelling cables in specified pre-cut lengths or complete reels.

Delivery Service

Our normal delivery time is 1—2 working days depending on stock.

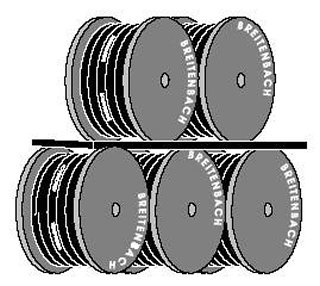

Complete Reels

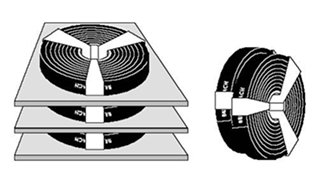

Pre-Cuts

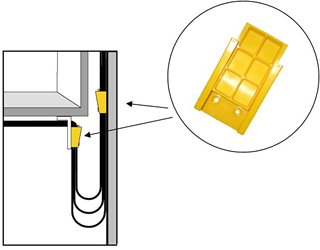

Travelling cable suspension clamp



Construction :

Polyamid clamps - 75mm



Recommendations :

· Max. 3 cables per clamp

· By more than 1 clamp, distance between each clamp min. 50mm

· By more than 1 cable, loop space between each cable min. 50mm



Download product brochure (PDF)
