Elevator Rope



Product range

For your application we have a wide range of ropes to cater for all your elevator needs.

Delivery times

In order to be able to supply you with all the elevator rope types on time, we stock the most usual rope types.

Delivery Service

Our normal delivery time is 1—2 working days depending on stock.



8 X 19 BRUGG

8 strands, regular lay right-hand

19 wires per strand

Seale construction

Bright, 1570 N/mm2 (Single Tensile)

or 1370/1770N/mm2 (Dual Tensile)

Sisal natural fiber core, pre and post-formed

Pre-lubricated

White surface line for installation check

Remaining elongation according to DIN 51201

max 0.5% of the rope length

Elastic elongation at 10% MBL

approx. 1.39–1.48‰ der of the rope length

Application/recommendation

Hoist rope for traction sheave elevators





Rope Ø

(mm)

Breaking Strength

Calc. (kN)

Breaking Strength

Min. (kN)

Weight

(kg/100M)

8.0

35.8

31.8

21.7

9.0

44.6

39.7

27.0

10.0

55.5

49.4

33.6

11.0

68.8

61.2

41.6

12.0

83.6

74.4

51.0

13.0

96.2

85.6

58.2

15.5

134.9

120.0

81.6

16.0

144.0

128.2

87.2

19.0

202.9

180.6

122.8

HRS—BRUGG

9 +9 strands, regular lay right-hand

Double parallel

Seale/Filler construction bright, 1570 N/mm2

Steel core

Pre and post-formed

Pre-lubricated

Blue surface line for installation check

Remaining elongation according to DIN 51201

max. 0.2% of the rope length.

Elastic elongation at 10% MBL approx. 1.03–1.07‰

of the rope length.

Application/recommendation

Hoist rope for traction sheave elevators





Rope Ø

(mm)

Breaking Strength

Calc. (kN)

Breaking Strength

Min. (kN)

Weight

(kg/100M)

8.0

49.4

40.5

26.0

9.0

66.1

54.2

35.0

10.0

80.7

66.2

43.0

11.0

97.0

79.5

52.0

12.0

114.3

93.8

61.0

13.0

132.3

108.5

71.0

14.0

153.0

125.5

82.0

15.5

192.3

157.7

103.0

16.0

201.2

164.9

108.0





Governor Ropes 8 x 19 Brugg

8 strands, regular lay right-hand

19 wires per strand Seale construction

galvanized, 1770 N/mm2 polypropylene fiber core

pre and post-formed Pre-lubricated

No surface line





Rope Ø

(mm)

Breaking Strength

Calc. (kN)

Breaking Strength

Min. (kN)

Weight

(kg/100M)

8.0

40.3

35.5

21.0

9.5

56.4

50.3

30.3

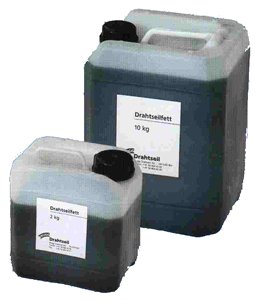

Rope Lubricant

The quality of the lubricant is very important for elevator ropes. Our Brugg lubricant was especially developed for the lubrication of elevator ropes.

Technology that convinces:

  • outstanding lubrication capability that optimally reduces the internal friction within the rope.

  • fast creep property and good penetration capability, as a result of which the lubricant can easily penetrate into the interior of the rope and strands.

  • excellent corrosion protection properties, which optimally protect the rope against corrosion due to humidity etc.

  • very good adhesion, as a result of which no lubricant is thrown off the rope even at high rope speeds.

  • neutral with respect to rope roller linings made of rubber and synthetic materials (no swelling).

  • quickly, biologically degradable due to its composition of vegetable-based oils.

  • does not contain solvents - can be used without problem in closed rooms.

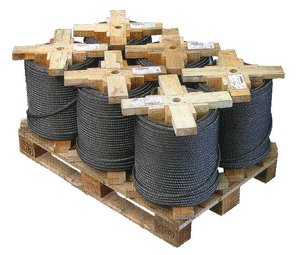

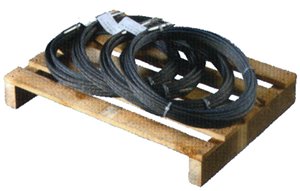

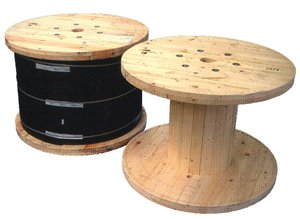

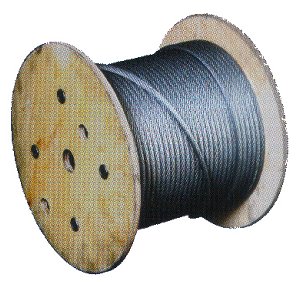

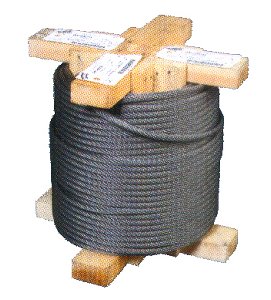

Packing

10 kg container

Our Standard Packing



Download product brochure (PDF)
